Product image slideshow Items

  • ALPZ-0720-ULS-MT

ALPZ-0720-ULS-MT

$125.00
Incl. tax

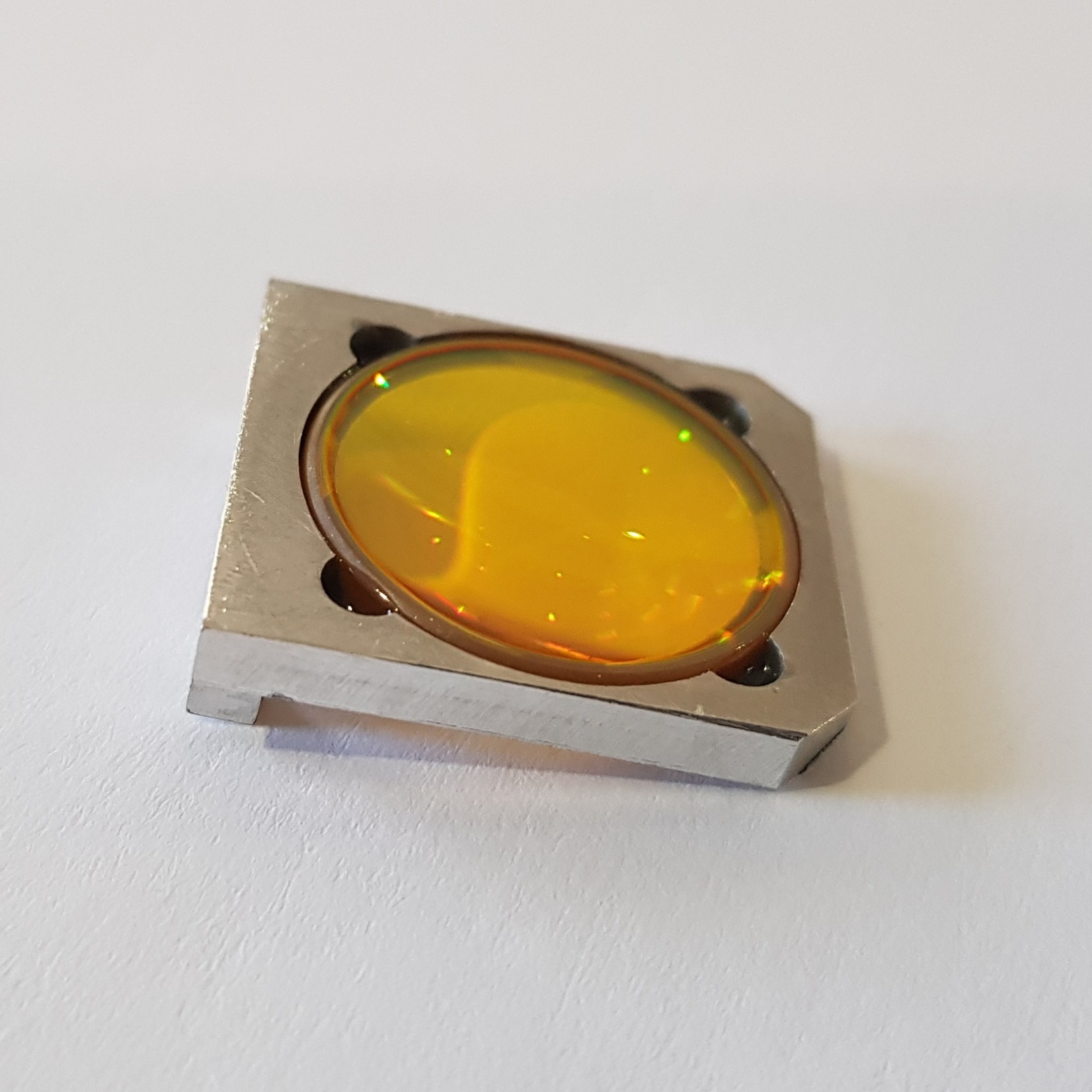

Universal Laser 2.0” Focus Lens Assembly
Plano-Convex Lens ZnSe - Model #: ALPZ-0720-ULS-MT
750"Ø X .080" (2.0mm) E.T.
EFL = 2.00" @ 10.6µm
Coated: AR/AR @ 10.6µm
Replaces: Univeral Laser ULS®
Fits PLS, I Series

The rating of this product is 0 out of 5

(0)
In stock

Specifications:

Material: ZnSe Laser Grade C.V.D. type
Diameter Tolerances: +.000", -.005"
Thickness: ±.010"
Surface Figure: < 1/40 wavelength @ 10.6µm
Centration: < .001"
Focal Length Tolerance: ±1.0%
Surface Quality: < 40/20 scratch-dig Laser Finish

Spectral Performance:

Standard AR Coating type Both Sides @ 10.6µm (AR)

Absorption: < 0.25 % total
Reflectance: < 0.20% per surface @ 10.6µm
Transmittance: > 99.0% typical

We Also Offer Special Coatings To Meet Our Customers Needs.
Please Call or Contact Us.

Ultra Low Absorption AR Coating type Both Sides @ 10.6µm (ULA)

Absorption: < 0.15 % total
Reflectance: < 0.25% per surface
Transmittance: > 99.0% typical

Absorption: < 0.30 % total
Reflectance: < 0.25% per surface @ 10.6µm
Transmittance: > 98.5% @ 10.6µm with > 90% @ .633µm
